Generator

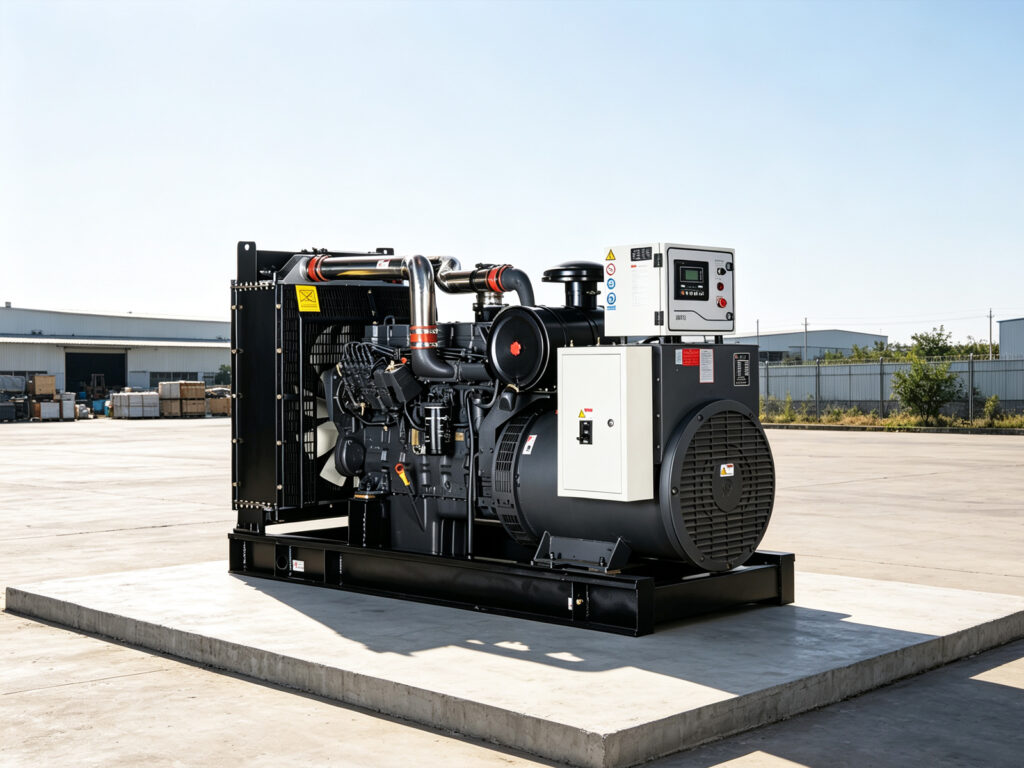

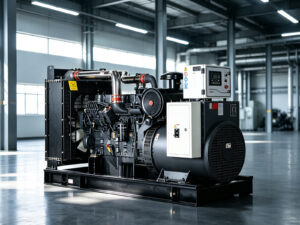

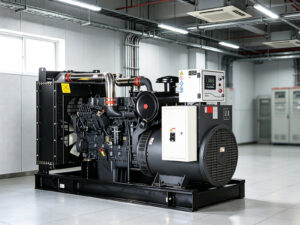

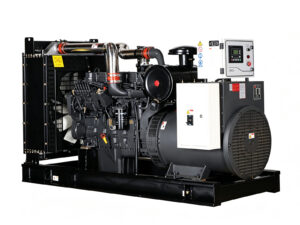

SDEC Shangchai Diesel Generator Set
SDEC / Shangchai diesel generator sets from 50 kW to 800 kW with digital control, for outdoor and plant-room installation.
Power range
50–800 kW
Engine
SDEC / Shangchai
Speed
1500 rpm
Control
Digital panel
Tel: +86 155 6470 9269
Email: [email protected]
Product Overview
SDEC (Shangchai) SC4H, SC7H, SC8D, SC9D, SC13, SC15, SC25, SC27 and SC33 engines power this 50–800 kW open-type line.
The black industrial finish with a digital controller is typical of CASDE’s SDEC packages for factories, construction and municipal standby.
Rated speed is 1500 rpm. Optional canopies, ATS and extended fuel tanks are available.
Key Features
- SDEC / Shangchai industrial engines
- Digital generator controller as standard
- Open skid with optional weather canopy
- Clear service access to filters and radiator
- Export packing and FAT documents

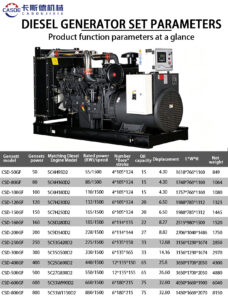

Technical Specifications
| Series | SDEC Shangchai diesel generator |
|---|---|
| CSD-50GF | 50 kW · SC4H95D2 |
| CSD-80GF | 80 kW · SC4H160D2 |
| CSD-100GF | 100 kW · SC4H180D2 |
| CSD-150GF | 150 kW · SC7H250D2 |
| CSD-200GF | 200 kW · SC9D340D2 |
| CSD-300GF | 300 kW · SC15G500D2 |
| CSD-400GF | 400 kW · SC25G690D2 |
| CSD-500GF | 500 kW · SC27G830D2 |
| CSD-600GF | 600 kW · SC33W990D2 |
| CSD-800GF | 800 kW · SC33W1150D2 |
| Rated speed | 1500 rpm |
Typical Applications
- Factory standby power
- Construction sites
- Municipal and telecom backup
- Commercial campuses
