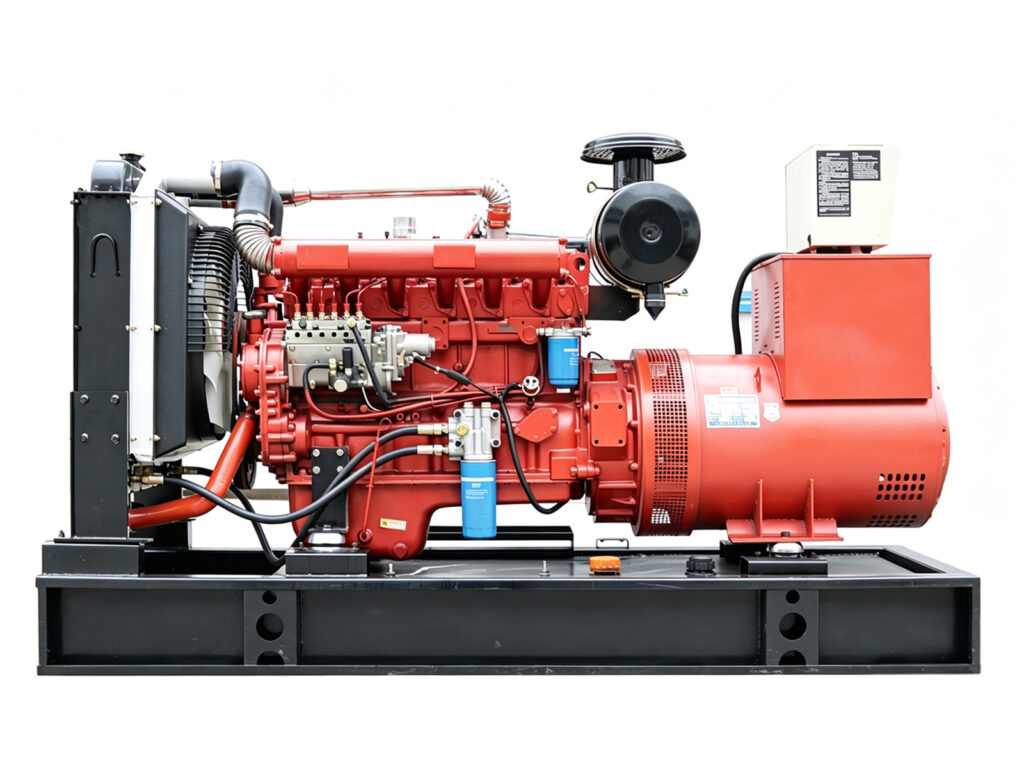

Weichai CSD-W Series Diesel Generator Set
Open-type Weichai / Ricardo diesel generator sets from 30 to 400 kW, 400/230 V 50 Hz, for industrial standby and prime power.
Power range
30–400 kW
Voltage
400/230 V
Frequency
50 Hz
Speed
1500 rpm
Tel: +86 155 6470 9269
Email: [email protected]
Product Overview
CASDE CSD-W series open-type diesel generator sets are built on Weichai and Ricardo-type water-cooled engines (K4100, R6105, 6126 families) with a matching brushless alternator on a heavy-duty skid.
The range covers 30 kW to 400 kW at 1500 rpm, 400/230 V 50 Hz — suited to factories, construction sites, commercial buildings and agricultural facilities that need accessible service and export-ready packaging.
Each set is assembled, load-tested and documented for overseas shipment, with optional control panels, fuel tanks and canopy versions on request.
Key Features
- Weichai / Ricardo water-cooled diesel engines
- Brushless alternator with AVR
- Open skid for easy inspection and service
- Factory load test and export packing
- Optional ATS, silent canopy and fuel tank

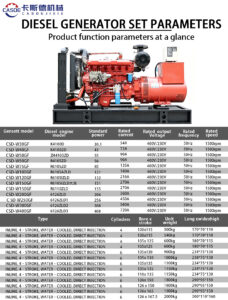

Technical Specifications
| Series | CSD-W open-type diesel generator |
|---|---|
| CSD-W30GF | 30.1 kW · K4100D · 54 A |
| CSD-W40GF | 41 kW · K4100ZD · 72 A |
| CSD-W50GF | 55 kW · ZH4105ZD · 90 A |
| CSD-W75GF | 85 kW · R6105ZD · 135 A |
| CSD-W100GF | 121 kW · R6105AZLD · 180 A |
| CSD-W150GF | 151 kW · R6105IZLD · 270 A |
| CSD-W200GF | 206 kW · 6126ZLD · 360 A |
| CSD-W250GF | 256 kW · 6126ZLD1 · 450 A |
| CSD-W300GF | 308 kW · 6126ZLD2 · 540 A |
| CSD-W400GF | 408 kW · 6126ZLD3 · 720 A |
| Rated voltage | 400/230 V |
| Rated frequency | 50 Hz |
| Rated speed | 1500 rpm |
| Engine type | Inline 4-stroke, water-cooled, direct injection |
Typical Applications
- Factory standby and prime power
- Construction and rental fleets
- Commercial buildings and campuses
- Agricultural and irrigation sites
