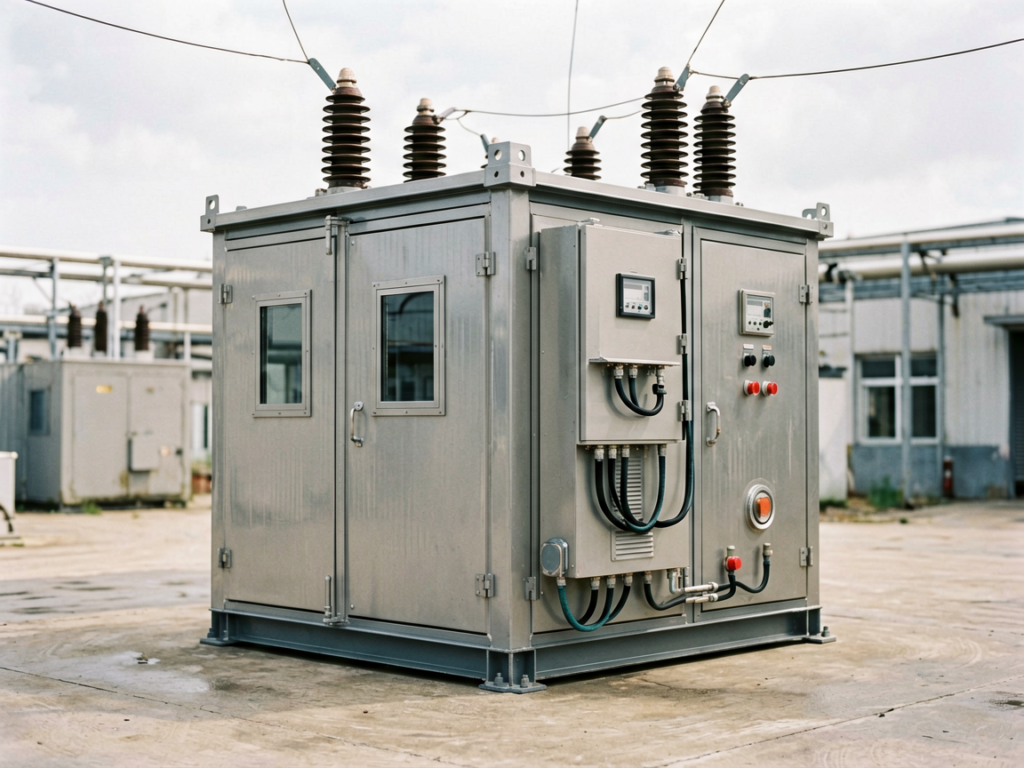

Prefabricated Box Substation
YB / ZGS type prefabricated substations integrating HV switchgear, transformer and LV distribution in a compact outdoor enclosure for fast deployment.
Type
YB / ZGS
Voltage
Up to 35 kV
Capacity
50–2500 kVA
Install
Outdoor pad
Tel: +86 155 6470 9269
Email: [email protected]
Product Overview
Factory-assembled compact substations minimize civil works and on-site wiring. Ideal for industrial parks, urban distribution and commercial developments.
Multiple compartment layouts and transformer types available to match local utility practices.
Key Features
- HV + transformer + LV in one package
- Compact outdoor metal enclosure
- Oil-immersed or dry-type transformer options
- Reduced installation and commissioning time
- Customizable protection schemes
- Suitable for utility and private networks
Technical Specifications
| HV rating | Up to 35 kV |
|---|---|
| Transformer capacity | 50–2500 kVA typical |
| Structure | Prefabricated metal box |
| Layout | European / American style options |
| Cooling / ventilation | Natural / forced as required |
Typical Applications
- Industrial parks and factories
- Urban distribution reinforcement
- Commercial and residential developments
- Temporary and modular power facilities
